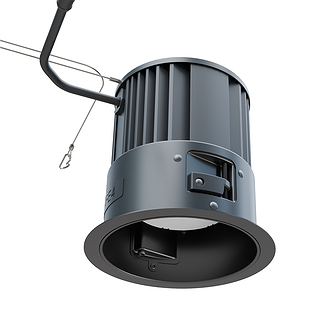

NBLM 4" Fixed LED module, 3000K CCT, CRI 90, 70mm optics TIR, comes stand with 39° Medium Flood beam angle. 6 selectable output 1100~2700lm with multi-watt driver, up to 3900lm with single watt driver
Model Number: NFE4-30K-90-MF
Ordering Code:
5110005
NBLM 4" Fixed LED module, 3500K CCT, CRI 90, 70mm optics TIR, comes stand with 39° Medium Flood beam angle. 6 selectable output 1100~2700lm with multi-watt driver, up to 3900lm with single watt driver
Model Number: NFE4-35K-90-MF
Ordering Code:
5110006
NBLM 4" Fixed LED module, 4000K CCT, CRI 90, 70mm optics TIR, comes stand with 39° Medium Flood beam angle. 6 selectable output 1100~2700lm with multi-watt driver, up to 3900lm with single watt driver
Model Number: NFE4-40K-90-MF
Ordering Code:
5110007
NBLM 4" Fixed LED module, 3 types of single CCT choices, CRI 90, 70mm optics TIR with 6 types of beam angle choices, from Spot to Wall-wash, and Oval beam. 6 selectable output 1100~2700lm with multi-watt driver, up to 3900lm with single watt driver
Model Number: NFE4 other options
Ordering Code:
Refer to the quotation

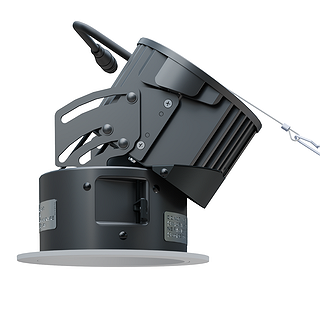

NBLM 4" Adjustable LED module, 3000K CCT, CRI 90, 50mm optics TIR, comes standard with 36° Medium Flood beam angle. 6 selectable output 1000~2400lm with multiple-watt driver.
Model Number: NAE4-30K-90-MF
Ordering Code:
5110008
NBLM 4" Adjustable LED module, 3500K CCT, CRI 90, 50mm optics TIR, comes standard with 36° Medium Flood beam angle. 6 selectable output 1000~2400lm with multiple-watt driver.
Model Number: NAE4-35K-90-MF
Ordering Code:
5110009
NBLM 4" Adjustable LED module, 4000K CCT, CRI 90, 50mm optics TIR, comes standard with 36° Medium Flood beam angle. 6 selectable output 1000~2400lm with multiple-watt driver.
Model Number: NAE4-40K-90-MF
Ordering Code:
5110010
NBLM 4" Adjustable LED module, 3 types of single CCT choices, CRI 90, 50mm optics TIR with 6 types of beam angle choices, from Narrow-spot to Wide-flood, and Oval beam. 6 selectable output 1000~2400lm with multiple-watt driver.
Model Number: NAE4 other options
Ordering Code:
Refer to the quotation

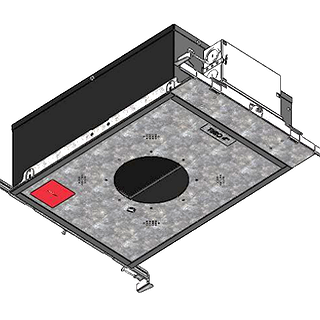

NBLM 4" IC rated mounting kit, attached with a multiple wattage driver provides 6 selectable output (NFE4: 1100~2700lm, NAE4: 1000~2400lm), 120-347V, 0-10V dimming to 1%
Model Number: NBLM4-IC-SB-D1-UN3-MW
Ordering Code:
5110002

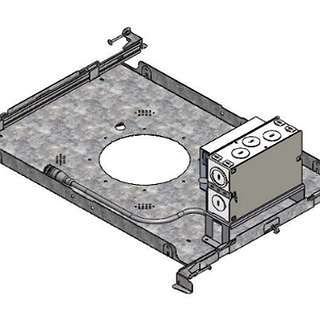

NBLM 4" Open-frame mounting kit, attached with a multiple wattage driver provides 6 selectable output (NFE4: 1100~2700lm, NAE4: 1000~2400lm), 120-347V, 0-10V dimming to 1%
Model Number: NBLM4-OF-SB-D1-UN3-MW
Ordering Code:
5110001

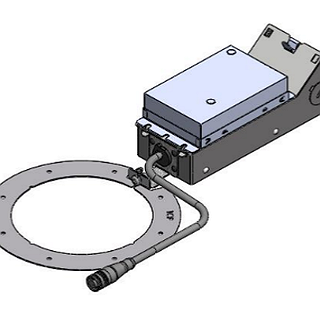

NBLM 4" Remodel/retrofit mounting kit, attached with a multiple wattage driver provides 6 selectable output (NFE4: 1100~2700lm, NAE4: 1000~2400lm), 120-347V, 0-10V dimming to 1%
Model Number: NBLM4-RM-RM-D1-UN3-MW
Ordering Code:
5110003
NBLM 4" Open-frame mounting kit, ONLY compatable with Fixed Engine NFE4. Supplied with signify driver, high output 3900lm, 120-277V, 0-10V dimming to 1%
Model Number: NBLM4-OF-SB-S1-UNV-39L
Ordering Code:
5110004
NBLM 4" Remodel/retrofit mounting kit, ONLY compatable with Fixed Engine NFE4. Supplied with signify driver, high output 3900lm, 120-277V, 0-10V dimming to 1%
Model Number: NBLM4-RM-RM-S1-UNV-39L
Ordering Code:
5110014
NBLM 4" Open-frame mounting kit for new construction, ONLY compatable with Fixed Engine NFE4. Supplied with single-wattage signify driver, deliver 3000lm, 3400lm or 3900lm output, 120-277V, 0-10V dimming to 1%
Model Number: NBLM4-OF-SB-S1-UNV, with Lumen options of 30L, 34L, 39L
Ordering Code:
Refer to the quotation
NBLM 4" Remodel/retrofit mounting kit, ONLY compatable with Fixed Engine NFE4. Supplied with single-wattage signify driver, deliver 3000lm, 3400lm or 3900lm output, 120-277V, 0-10V dimming to 1%
Model Number: NBLM4-RM-RM-S1-UNV, with Lumen options of 30L, 34L, 39L
Ordering Code:
Refer to the quotation
